Copper Pin Type Terminal Ends Insulated With Metal Reinforcement For Solderless Crimping
To Copper/Aluminium Conductors
Material: Copper IS: 1897
Finish: Electro Tinned
Color Coding Of Insulation Sleeve
Size(MM2): 0.7 – 1 – 1.5 – 2.5 – 4-6 – 10 – 6
Color: Red – Blue – Yellow – Black

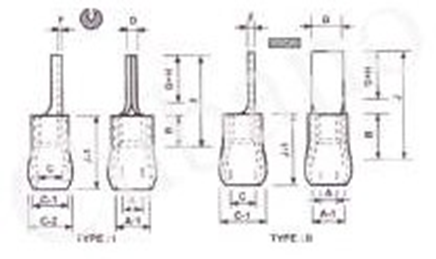

| SR.NO. | AREA mm2 | A | C | D | F | B | G+H | J | J-1 | A-1 | C-1 | C-2 | TYPE | CAT.NO. |
| 932 | 1.0 | 1.2 | 2.8 | 1.7 | 0.8 | 5 | 10 | 17 | 10 | – | 4.8 | 5.1 | I | CPM 0 |
| 933 | 1.5 | 1.6 | 3.2 | 1.9 | 0.8 | 5 | 10 | 17 | 10 | 3.6 | 4.8 | 5.4 | I | CPM 26 |
| 934 | 2.5 | 2.3 | 3.9 | 1.9 | 0.8 | 5 | 10 | 17 | 10 | 4.4 | 5.4 | 6.0 | I | CPM 27 |
| 935 | 2.5 | 2.3 | 3.9 | 3.1 | 0.8 | 5 | 10 | 17 | 10 | 4.4 | 5.4 | 6.0 | II | CPM 28 |
| 936 | 4.0 | 2.9 | 4.9 | 2.7 | 1.0 | 6 | 10 | 20 | 15 | 6.4 | 7.2 | 8.6 | I | CPM 29 |
| 937 | 4.0 | 3.6 | 5.6 | 5.1 | 1.0 | 6 | 10 | 20 | 15 | 6.4 | 7.2 | 8.6 | II | CPM 30 |
| 938 | 6.0 | 3.6 | 5.6 | 2.7 | 1.0 | 6 | 10 | 20 | 15 | 6.4 | 7.2 | 8.6 | I | CPM 31 |
| 939 | 6.0 | 4.0 | 6.0 | 2.7 | 1.0 | 6 | 10 | 20 | 15 | 6.4 | 7.2 | 8.6 | I | CPM 32 |
| 940 | 0.75 | 0.9 | 1.9 | 3.2 | 0.5 | 5 | 10 | 17 | 8 | 2.0 | 3.1 | – | II | CPM 54 |
| 941 | 2.5 | 2.3 | 3.9 | 1.7 | 0.8 | 5 | 15 | 22 | 10 | 4.4 | 5.4 | 6.0 | I | CPM 52 |
| 942 | 10.0 | 4.5 | 6.7 | 4.3 | 1.1 | 8 | 12 | 22 | 17 | 6.8 | 8.3 | 9.5 | I | CPM 33 |
| 943 | 16.0 | 5.8 | 8.2 | 5.5 | 1.2 | 10 | 13 | 26 | 23 | 10.9 | 9.9 | 12.9 | I | CPM 34 |
