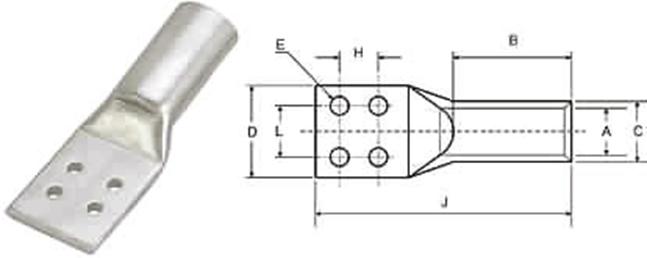

Four Hole Transformer Cable Lugs

Material: E-Copper
Finish: Electro Tinned

SR.NO.	CABLE SIZE	STUD Hole	A	C	D	B	L	H	J	CAT.NO.
1721 – 1722	300	8.5 – 10.5	23.5 – 23.5	30 – 30	56 – 56	42 – 42	35 – 35	25 – 25	101 – 101	CTT 3004E8 CTT 3004E10
1723 – 1724	400	8.5 – 10.5	28.5 – 28.5	36.5 – 36.5	56 – 56	44 – 44	35 – 35	25 – 25	114 – 114	CTT 4004E8 CTT 4004E10
1725 – 1726	500	8.5 – 10.5	30 – 30	39 – 39	56 – 56	48 – 48	35 – 35	25 – 25	124 – 124	CTT 5004E8 CTT 5004E10
1727 – 1728	630	8.5 – 10.5	35 – 35	45 – 45	65 – 65	56 – 56	35 – 35	25 – 25	144 – 144	CTT 6304E8 CTT 6304E10
1729 – 1730	800	8.5 – 10.5	35 – 35	45 – 45	63.8 – 63.8	58 – 58	35 – 35	25 – 25	148 – 148	CTT 8004E8 CTT 8004E10
1731 – 1732	1000	8.5 – 10.5	43 – 43	56.2 – 56.2	78.5 – 78.5	90 – 90	35 – 35	25 – 25	250 – 250	CTT 10004E8 CTT 10004E10
